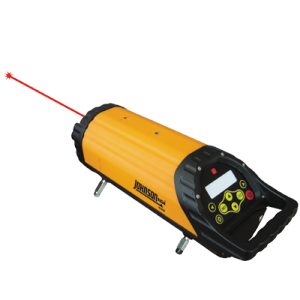

Electronic Self Leveling Pipe Laser

Model: 40-6690

Johnson Level & Tool Co.

  • Johnson's Pipe Laser is constructed from cast aluminum and is nitrogen purged, then sealed for total waterproofing.  All internal components of the pipe laser are protected with the rugged housing and can handle the toughest and harshest jobsite conditions.
  • (click image to enlarge)
    Quick Overview
    • Number of Beams: 1

    • Leveling Method: Automatic (Electronic)

    • Laser Wavelength: 635nm +/- 10nm (Red)

    • Laser Classification: Class IIIa

    • Maximum Power Output: <=5mW

    • Accuracy: +/-1/16"/100-ft. (+/-5mm/100m; +/-10 arc sec)

    • Self-Leveling Range: +/-5 degrees

    • Power Supply: NiMH rechargeable battery pack (included), 6.4V battery adaptor and 12V car charger (included) or 4 "D" alkaline batteries (not included)

    • Dimensions: 5.19" x 14.96" (132mm x 380mm)

    • Weight: 13.2 lbs (6 kg)

    • Working Temperature: -4F to 122F (-20C to 50C)

    • IP Protection Class: 68 Nitrogen Purged

    • Warranty: 3 years with store receipt
    Interested in this item or want more information?

    Phone: (800)-430-1417
    Email: teri.collins@yoshissupply.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
  • Large, illuminated LCD display makes information easy to see and use

  • Easy grade input to enter by individual digit for quick set-up changes

  • Infrared remote control works over long distances providing real time data between remote and pipe laser

  • Laser dot center feature automatically centers laser dot on target

  • Battery indicator monitors battery level in rechargeable and alkaline battery packs

  • Sleep mode turns off laser beam and display
  • Additional Information
    Manufacturer: Johnson Level & Tool Co.
    For More Information on the Electronic Self Leveling Pipe Laser, [Click Here] to Link to Manufacturer Web Site
