GreenBrite Laser Precision Level

Model: 40-6242

Johnson Level & Tool Co.

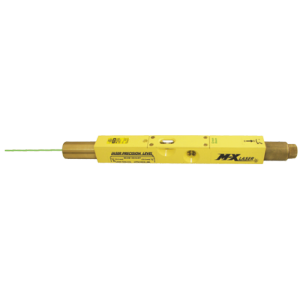

GreenBrite Laser Precision Level
(click image to enlarge)
Quick Overview
  • Laser Wavelength: 635nm (Red), 532nm (Green)

  • Laser Classification: Class IIIa (Red), Class II (Green)

  • Maximum Power Output: <5mW (Red), <1mW (Green)

  • Accuracy: +1/16"/100'

  • Level Vial: 5 minute accurate to +1/8"/100'

  • Plumb Vials: 30 minute accurate to +1/4"/20'

  • Power Supply: 2AA "MN1500" alkaline batteries - over 4 hours continuous operation (Red).  2 "CR123A" lithium photo batteries - over 40 hours continuous operation (Green).

  • Dimensions: 1" x .125" x 13"

  • Weight: Less than 20 oz.
Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.
Details
  • Measures level or plumb using the precision level vial or two plumb vials that are built in and factory set

  • Bright red or green beam laser dots

  • Turn the laser on by turning the battery cap switch

  • Mark the center of the laser dot and subtract 1/2" to reference the bottom of the level

  • Working edge is machined flat to 0.005"

  • Solid aluminum frame - one piece case design won't bend or twist and it's weather protected

  • Recessed level vials are easy to read, but well protected

  • Features industrial grade optics that are fully coated for maximum performance

  • ¼" - 20 thread mounting hole can be mounted to standard camera tripods for stand alone operation

  • Battery operated with over 30 hours of continuous operation

  • Solid brass end caps provides for years of trouble free service

  • Optical calibration - no set screws

  • Wedge prisms factory calibrated - no field adjustments required

  • Ideal for site layouts, crosscut and break measurements, slope, conveyors, grade and transit work
    • Additional Information
    Manufacturer: Johnson Level & Tool Co.
    For More Information on the GreenBrite Laser Precision Level, [Click Here] to Link to Manufacturer Web Site
