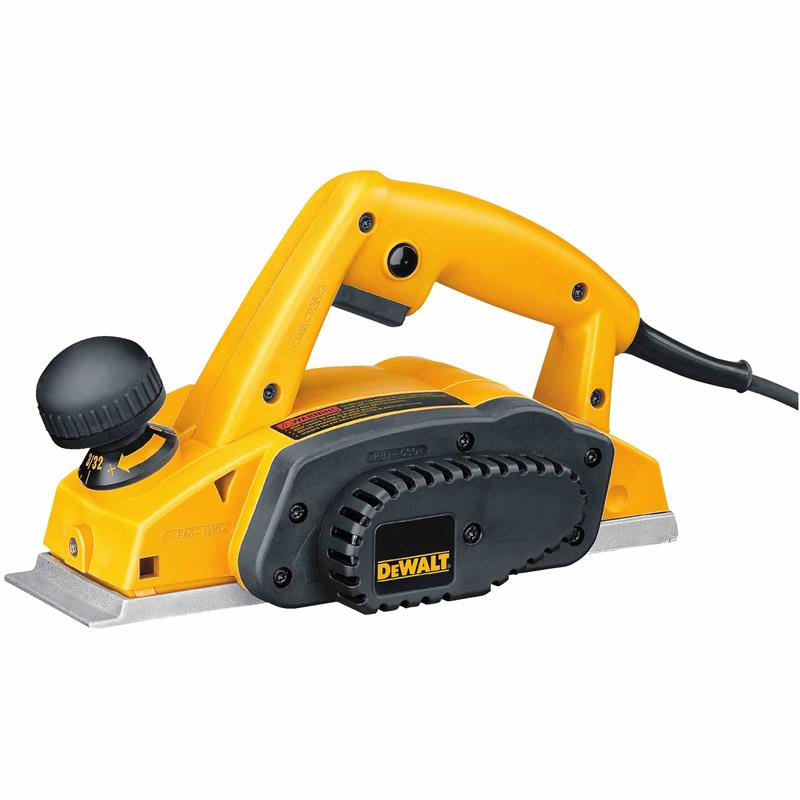

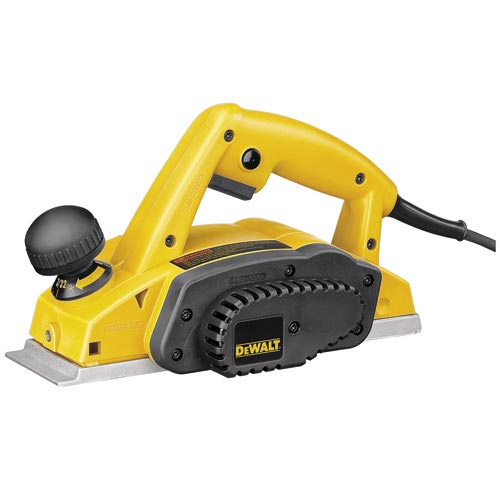

3-1/4" Planer Kit with 3/32" (2.5mm) Depth of Cut

DW680K

DeWalt

The DW680K 3-1/4" Planer Kit with 3/32" (2.5mm) Depth of Cut has a heavy-duty 7.0 Amp motor that provides a smooth, even finish in the hardest of woods. 3/32" maximum depth of cut per pass decreases passes on your material.
(click image to enlarge)
Quick Overview
  • Amps 7.0Amps
  • No Load Speed 15,000rpm
  • Depth of Cut (mm) 2.5mm
  • Depth of Cut (inches) 3/32''
  • Planning Width 3-1/4''
  • Rabbeting Depth 1/2''
  • Tool Weight 6.2lbs
  • Shipping Weight 12lbs
Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Features & Specs

FEATURES

  • Heavy-duty 7.0 amp motor provides a smooth, even finish in the hardest of woods
  • 3/32" (2.5mm) maximum cut in one pass reduces the amount of passes on your material
  • Accepts large resharpenable high-speed steel blades for straight edging or framing applications
  • Calibrated Depth Adjustment Knob for accurate depth setting and eliminating the need to re-zero your depth
  • Also accepts reversible carbide blades for more detailed, accurate woodworking
  • Precision-machined shoe bottom and side provides flat surface finish as well as accurate and square rabbet joints
  • Kickstand allows you to rest the planer on the material in between passes without gouging your material
  • Rubber-coated front-height adjustment knob for greater comfort and better control
  • Three precision-machined grooves in front shoe provide three different sizes for edge chamfering
  • Poly-V drive belt provides increased belt durability
  • Ergonomically designed, two-finger trigger for increased comfort and less user fatigue
  • 15,000 rpm for a smooth, high-quality cut

Specifications

  • Amps 7.0 Amps
  • Depth of Cut (inches) 3/32 in
  • Depth of Cut (mm) 2.5 mm
  • No Load Speed 15,000 rpm
  • Planer Type Portable
  • Planning Width 3-1/4 in
  • Power Tool Type Corded
  • Rabbeting Depth 1/2 in
  • Tool Weight 6.2 lbs

Includes

  • Two reversible carbide blades
  • Rabbeting fence
  • Kit Box
Additional Information
Manufacturer: DeWalt
