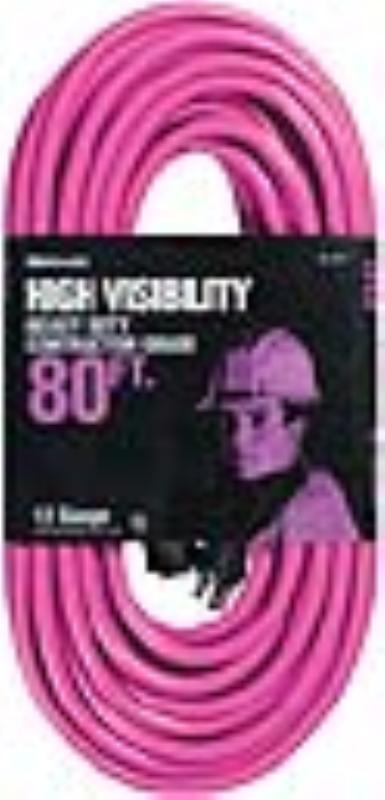

12/3 80' Neon Purple Extension Cord W/Black Plug

4312

Coleman Cable - CCI

(click image to enlarge)
Quick Overview
    Features & Application :-
    • Contractor grade SJTW cord features a high gloss jacket in a variety of colors
    • Striped cords feature a dominant color and an extruded colored stripe that runs the length of the cord
    • Increase safety awareness and help to prevent job-site loss (or theft)
    • Clear molded plugs with power-indicator light in female end to show that the power is on
    • Heavy-duty strain relief and reinforced blades and ground pin
    • Reinforced blades help prevent accidental bending or breaking
    • Job sites
Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters:-

Electrical Properties:-

Cable type 12/3 SJTW
Conductors 65/30 bare copper
Jacket material PVC
Overall cable O.D. (nom) 0.420 in
Cord rating Hard Usage per the National Electrical Code
Cable legend Indent print
Cable color Purple
Cord length 80 ft
Attachment plug configuration NEMA 5-15P
Cord connector configuration NEMA 5-15R
Plug and connector material PVC
Plug and connector color Black
Cable temperature rating -40 to +60°C
Nominal operating voltage 125 VAC
Maximum operating current 15A
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the 12/3 80' Neon Purple Extension Cord W/Black Plug, [Click Here] to Link to Manufacturer Web Site
