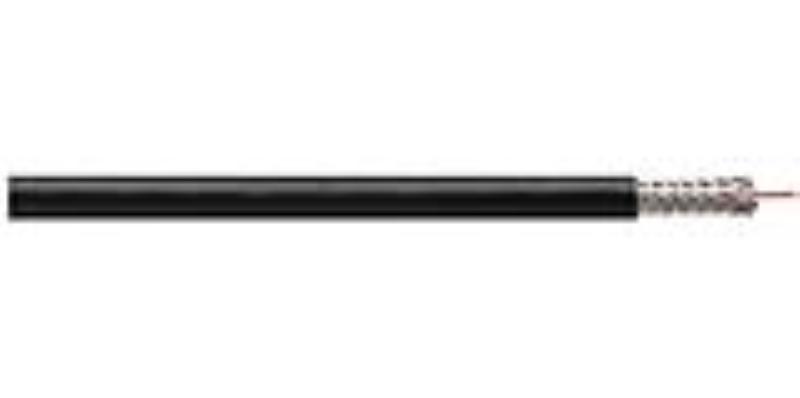

Coleman Cables Rg59 22Ccs 65 Al

92009

Coleman Cable - CCI

Rg59 22Ccs 65 Al
(click image to enlarge)
Quick Overview
    Features & Applications:-
  • RG59 Type
  • PE Dielectric
  • PVC Jacket
    • Interested in this item or want more information?

    Phone: (800)-430-1417
    Email: teri.collins@yoshissupply.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

    Construction Parameters

    Electrical Properties

    Wall (in)* OD (in)*
    Conductors 22 AWG (1/.025) Copper Clad Steel - 0.025
    Dielectric Foam Polyethylene color natural0.0610.146
    1st Shielding:Fusible Aluminum/Polyester/Aluminum Tape plus 65% Aluminum Braid -0.182
    JacketPVC0.0300.242
    VALUE*
    Conductor Resistance (ohms/mft) - 69
    Impedance (ohms)- 75
    Capacitance (Max. pF/ft) - 17
    Velocity of Propagation (%) - 80
    Attenuation (Max. db/100 ft) 50 MHz2.0
    100 MHz2.9
    200 MHz4.1
    400 MHz5.9
    700 MHz7.8
    1000 MHz9.9
    Additional Information
    Manufacturer: Coleman Cable - CCI
    For More Information on the Coleman Cables Rg59 22Ccs 65 Al, [Click Here] to Link to Manufacturer Web Site
