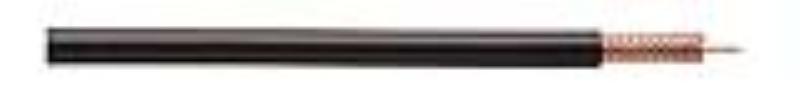

Coleman Cables Rg6 18Bc 95 Bc Direct Burial Non-Ul

92061

Coleman Cable - CCI

(click image to enlarge)
Quick Overview
    Features & Applications:-
    • RG6 Type
    • PE Dielectric
    • PVC Jacket
    • CCTV
Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties:-

Wall (in)* OD (in)*
Conductor 18 AWG (1/.040) Solid Bare Copper - 0.040
Dielectric Foam Polyethylene color natural 0.070 0.175
Shielding 95% Bare Copper Braid - 0.197
Jacket PVC 0.034 0.265
VALUE*
Impedance(ohms) - 75
Capacitance (pF/ft) - 17.4
Velocity of Propagation (%) - 78
Attenuation** (db/100 ft) 50 MHz 1.5
100 MHz 2.1
200 MHz 3.1
400 MHz 4.4
700 MHz 5.9
1000 MHz 7.3
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg6 18Bc 95 Bc Direct Burial Non-Ul, [Click Here] to Link to Manufacturer Web Site
