Details

Construction Parameters:-
Electrical Properties:-

Cable 1 Blue 24/4PR Cat 5e

Cable 2 Gray 24/4PR Cat 5e

Cable 3 Black 18ga Quad Shielded RG 6/U Coax

Diameters Cable 1 0.200'' Nom.

Cable 2 0.200'' Nom.

Cable 3 0.295'' Nom

Overall Jacket Material PVC

Overall Jacket Thickness 0.023'' Nom.

Overall Cable Diameter 0.553'' Nom.

Approximate Cable Weight 99.1 Lbs/1M' Nom.

Flame Rating UL 1581 Vertical Tray Flame Test

Temperature Rating -20°C to 60°C

Operating Voltage 300 V RMS Max.

Additional Information

Manufacturer: Coleman Cable - CCI

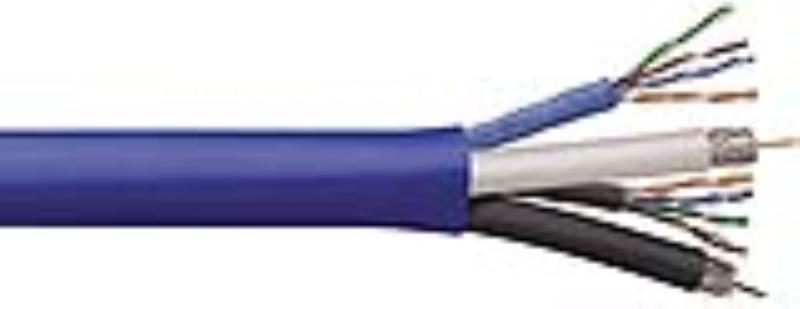

For More Information on the (1)Rg6 Quad 18Ccs 60/40%Al + (2)Cat 5E 24/4 Pr Bc, [Click Here] to Link to Manufacturer Web Site


Cable 1		Blue 24/4PR Cat 5e
Cable 2		Gray 24/4PR Cat 5e
Cable 3		Black 18ga Quad Shielded RG 6/U Coax
Diameters	Cable 1	0.200'' Nom.
	Cable 2	0.200'' Nom.
	Cable 3	0.295'' Nom
Overall Jacket Material		PVC
Overall Jacket Thickness		0.023'' Nom.
Overall Cable Diameter		0.553'' Nom.
Approximate Cable Weight		99.1 Lbs/1M' Nom.
Flame Rating		UL 1581 Vertical Tray Flame Test


Temperature Rating	-20°C to 60°C
Operating Voltage	300 V RMS Max.
