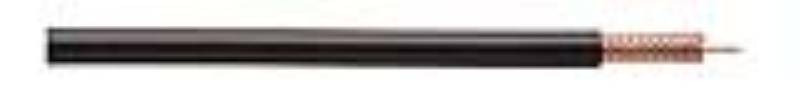

Coleman Cables Rg11 14Bc 95 Bc Direct Burial (Flooded) Non-Ul

191037

Coleman Cable - CCI

Rg11 14Bc 95 Bc Direct Burial (Flooded) Non-Ul
(click image to enlarge)
Quick Overview
    Features & Application :-
    • PE Dielectric
    • PVC Jacket
    • Tinned Copper Braid
    • Video
    • CATV
Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties

Wall (in)* OD (in)*
Conductors 14 AWG (1/.064) Solid Bare Copper - 0.064
Dielectric Foam Polyethylene color natural 0.1080.285
Shielding 96% Bare Copper Braid -0.313
Waterblock Flooding Compound -0.313
JacketPolyethylene 0.0460.405
Conductor resistance (ohms/mft): -2.6
Impedance (ohms)-75
Capacitance (pF/ft) - 17.3
Velocity of Propagation (%) -78
Attenuation (Max. db/100 ft) 50 MHz 1.3
100 MHz2.0
200 MHz2.9
400 MHz4.2
900 MHz6.8
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg11 14Bc 95 Bc Direct Burial (Flooded) Non-Ul, [Click Here] to Link to Manufacturer Web Site
