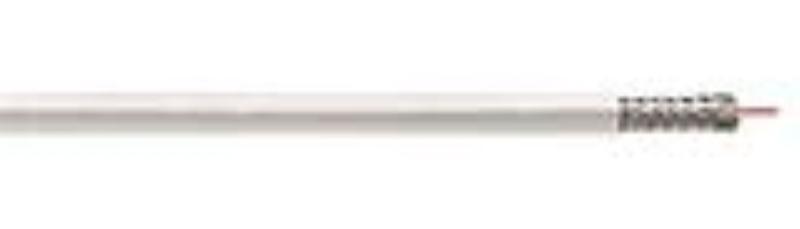

Coleman Cables Rg11 14Ccs 60 Al Plenum 3.0Ghz

821013

Coleman Cable - CCI

(click image to enlarge)
Quick Overview
    Features & Application:-
    • RG11 Type
    • FEP Dielectric
    • PVC Low Smoke Plenum Jacket
    • CATV
Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties:-

Wall (in)* OD (in)*
Conductor 14 AWG (1/.064) Solid Copper Clad Steel - 0.064
Dielectric Foam FEP color natural 0.108 0.280
Shielding 1&2 Aluminum/Polyester/Aluminum Foil with 60% Aluminum Braid - 0.312
Jacket Polyvinylidene Fluoride (Kynarâ) 0.0170 0.346
VALUE*
Conductor Resistance (ohms/kft) - 11.1
Impedance(ohms) - 75
Capacitance (pF/ft) - 16.5
Velocity of Propagation (%) - 82
Attenuation** (db/100 ft) 10 MHz 0.5
50 MHz 1.1
100 MHz 1.4
200 MHz 2.1
400 MHz 3.3
700 MHz 5.4
1000 MHz 5.9
1450 MHz 7.2
1800 MHz 7.9
2200 MHz 9.5
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg11 14Ccs 60 Al Plenum 3.0Ghz, [Click Here] to Link to Manufacturer Web Site
