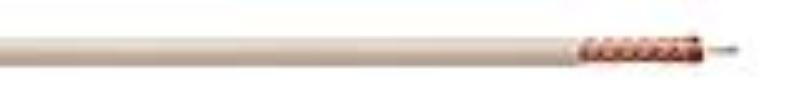

Coleman Cables Rg6 18Bc 95 Bc Plenum

921003

Coleman Cable - CCI

(click image to enlarge)
Quick Overview
    Features & Application:-
    • RG6 Type
    • Bare Copper Center Conductor
    • FEP Dielectric
    • PVC Low Smoke Plenum Jacket
    • CCTV
Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties:-

Wall (in)* OD (in)*
Conductor 18 AWG (1/.040) Solid Copper - 0.040
Dielectric Foam FEP color natural 0.065 0.170
Shielding 95% Copper Braid - 0.195
Jacket Low Smoke PVC 0.022 0.238
VALUE*
Conductor Resistance (ohms/kft) - 6.5
Impedance(ohms) - 75
Capacitance (pF/ft) - 16.5
Velocity of Propagation (%) - 82
Attenuation** (db/100 ft) 50 MHz 1.5
100 MHz 2.0
200 MHz 3.0
500 MHz 5.2
700 MHz 6.0
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg6 18Bc 95 Bc Plenum, [Click Here] to Link to Manufacturer Web Site
