Coleman Cables M17/90-Rg071

988480

Coleman Cable - CCI

M17/90-Rg071

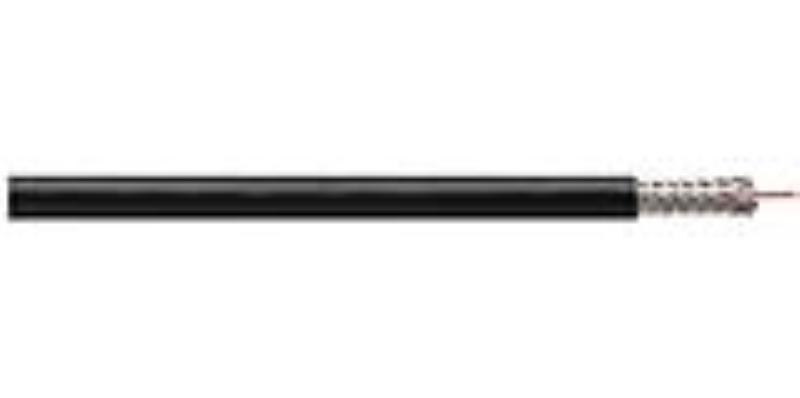

(click image to enlarge)
Quick Overview
    Features & Application:-
    • Manufactured in accordance with, tested & certified to individual Slant Sheets ie:(M17/028-RG058)
    • RoHS & REACH compliant insulating compounds
    • Test Reports with manufacturing lot for each & every cable
    • Certificate of Compliance with MIL-DTL-17
    • Made in the USA
    • High frequency RF antenna for ground support equipment
    • Radar systems & flight guidance equipment
    • Secure & cryptic aerospace communications
Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties

OD (in)*
Conductors 22 AWG 0.0253” solid Copper clad steel 0.025
Dielectric "Semi-Solid Polyethylene color natural (includes 0.035” Diameter Monofilament thread (Air space)" 0.146
1st Shielding 95% Bare Copper Braid 0.196
Jacket PE 0.245
VALUE*
Conductor Resistance (Max./100 ft)- 4.4
Shield Resistance (ohms/1000 ft) - 2.9
Impedance (ohms)- 93
Capacitance (Max. pF/ft)- 14.5
Velocity of Propagation (%) - 84
Attenuation (Max. db/100 ft) 50 MHz1.9
100 MHz2.7
200 MHz4.1
400 MHz8.0
1000 MHz 13.0
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables M17/90-Rg071, [Click Here] to Link to Manufacturer Web Site
