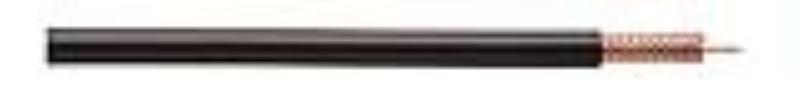

Coleman Cables Rg58 C/U 21Tc Pe 95 Tc

991047

Coleman Cable - CCI

Rg58 C/U 21Tc Pe 95 Tc
(click image to enlarge)
Quick Overview
    Features & Applications:-
  • RG58 Type
  • PE or FPE Dielectric
  • PVC Jacket
    • Interested in this item or want more information?

    Phone: (800)-430-1417
    Email: teri.collins@yoshissupply.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

    Construction Parameters

    Electrical Properties

    Wall (in)* OD (in)*
    Conductors 21 AWG (19/.007) Stranded Tinned Copper - 0.035
    Dielectric Solid Polyethylene color natural 0.0410.116
    Shielding 95% Tinned Copper Braid - 0.138
    JacketPVC (Non-Contaminating Type IIA)0.0290.195
    VALUE*
    Conductor Resistance (ohms/Kft) - 11
    Impedance (ohms) - 50-3
    Capacitance (Max. pF/ft) - 30.8
    Velocity of Propagation (%) - 66-1
    Attenuation (Max. db/100 ft) 50 MHz3.3
    100 MHz4.9
    200 MHz7.3
    400 MHz11.5
    900 MHz20.0
    Additional Information
    Manufacturer: Coleman Cable - CCI
    For More Information on the Coleman Cables Rg58 C/U 21Tc Pe 95 Tc , [Click Here] to Link to Manufacturer Web Site
