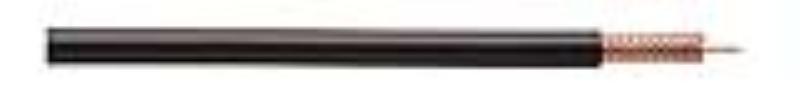

Coleman Cables Rg58 20Tc Fpe 95 Tc

991049

Coleman Cable - CCI

Rg58 20Tc Fpe 95 Tc
(click image to enlarge)
Quick Overview
    Features & Applications:-
  • RG58 Type
  • PE or FPE Dielectric
  • PVC Jacket
    • Interested in this item or want more information?

    Phone: (800)-430-1417
    Email: teri.collins@yoshissupply.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

    Construction Parameters

    Electrical Properties

    Wall (in)* OD (in)*
    Conductors 20 AWG (19/32) Tinned Copper - 0.040
    Dielectric Foam Polyethylene color natural 0.0370.114
    Shielding 95% Tinned Copper Braid - 0.136
    JacketPVC0.0310.198
    VALUE*
    Impedance (ohms) - 50
    Capacitance (Max. pF/ft) - 26
    Velocity of Propagation (%) - 78
    Attenuation (Max. db/100 ft) 50 MHz3.2
    100 MHz4.5
    200 MHz6.4
    400 MHz9.0
    700 MHz12.0
    900 MHz13.8
    1000 MHz14.5
    2000 MHz24.5
    Additional Information
    Manufacturer: Coleman Cable - CCI
    For More Information on the Coleman Cables Rg58 20Tc Fpe 95 Tc , [Click Here] to Link to Manufacturer Web Site
