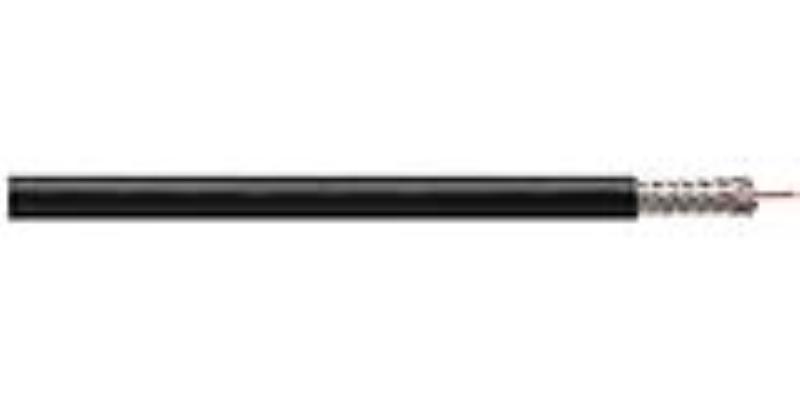

Coleman Cables Rg11 14Bc 60 Al 3.0Ghz

992153

Coleman Cable - CCI

Rg11 14Bc 60 Al 3.0Ghz
(click image to enlarge)
Quick Overview
    Features & Application :-
    • PE Dielectric
    • PVC Jacket
    • Tinned Copper Braid
    • Video
    • CATV
Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties

Wall (in)* OD (in)*
Conductors 14 AWG (1/.064) Solid Bare Copper - 0.064
Dielectric Foam Polyethylene color natural0.1100.285
1st Shielding Fusible Aluminum/Polyester/Aluminum foil with 60% Aluminum Braid -0.321
JacketPVC 0.0330.272
Conductor Resistance (ohms/kft)-2.6
Impedance (ohms)-75
Capacitance (pF/ft) - 17.3
Velocity of Propagation (%) - 78
Attenuation (Max. db/100 ft) 50 MHz 1.0
100 MHz 1.3
200 MHz 1.8
400 MHz 2.5
700 MHz 3.5
1000 MHz 4.2
1400 MHz 5.1
2000 MHz 6.2
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg11 14Bc 60 Al 3.0Ghz, [Click Here] to Link to Manufacturer Web Site
