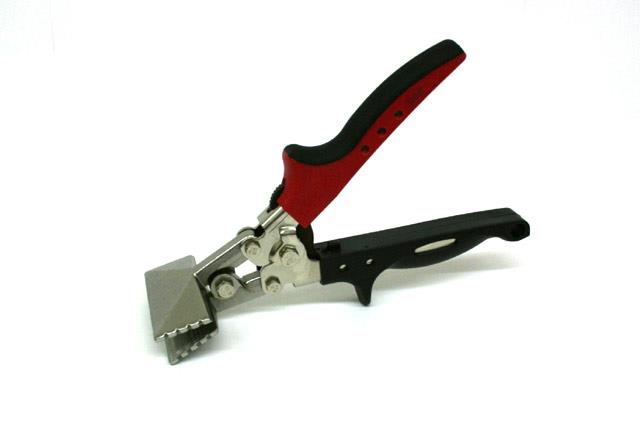

Hand Seamer with Forged Jaws

S2R

Malco

Malco Hand Seamers, with forged steel jaws, are the premier choice for bending, folding, flattening and straightening  sheet metal edges or safely gripping and moving sheet metal around the job site.  These seamers are available in 3 inch (76.2 mm) and 6 inch (152.4 mm) jaw widths as well as an offset 3 inch (76.2 mm) size for overhead work.  The drop-forged, high-impact jaws feature depth markings graduated in 1/4 inch (6.35 mm) increments and are complimented by a powerful compound leverage design.  Easily bend flanges or completely flatten seams from 1/4 to 1-1/4 inch (6.35-31.75 mm) deep in 24 gauge (0.71 mm) galvanized or (0.61 mm) mild steel.          Malco’s Hand Seamers, with forged steel jaws, also feature ergonomic RedLine Handle technology.  An Engineered handle opening compliments the natural power stroke of any user’s hand and maximizes the powerful 7:1 mechanical advantage of compound-leverage head to handle linkage.  Comfortable handle grip contours, a non-slip grip insert, spring handle actuation and a thumb-operated handle latch ensure a natural fit and feel for comfortable one hand operation anywhere on the job.
(click image to enlarge)
Quick Overview
  • Bend, fold, flatten, straighten sheet metal on the job.
  • Depth markings graduated in 1/4 inch (6.35 mm) increments to a full 1-1/4 inch (31.75 mm) jaw depth.
  • 24 gauge (0.71 mm) capacity in galvanized steel.
  • Compou
Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.
Details
Catalog # Description Jaw Width in. (mm) Jaw Depth in. (mm) Capacity: Steel Gauge Galvanized, Mild Nominal Length in. (mm) Net Weight oz. (g)
S2R Hand Seamer 3-1/4 (82.55) 1-1/4 (31.75) 24 (0.71), (0.61) 222 680
S2R SV Hand Seamer - South Pacific Only 3-1/4 (82.55) 1-1/4 (31.75) 24 (0.71), (0.61) 222 680
S3R Offset Hand Seamer 3-1/4 (82.55) 1-1/4 (31.75) 24 (0.71), (0.61) 216 680
S3R SV Offset Hand Seamer - South Pacific Only 3-1/4 (82.55) 1-1/4 (31.75) 24 (0.71), (0.61) 216 680
S6R Hand Seamer 6 (152.5) 1-1/4 (31.75) 24 (0.71), (0.61) 8-3/4 (222) 30 (851)
S6R SV Hand Seamer - South Pacific Only 6 (152.5) 1-1/4 (31.75) 24 (0.71), (0.61) 8-3/4 (222) 30 (851)
Additional Information
Manufacturer: Malco
For More Information on the Hand Seamer with Forged Jaws, [Click Here] to Link to Manufacturer Web Site
