"Gold Standard" Malco Hole Cutters C

HC1

Malco

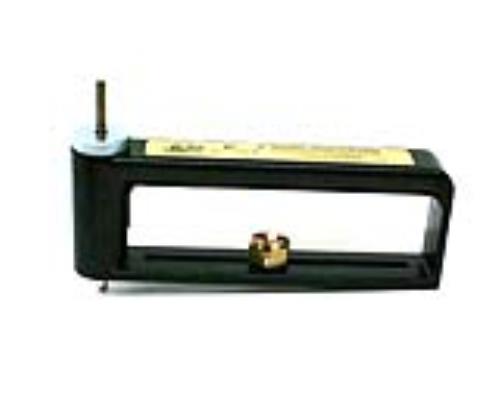

Distinctive gold Bits, Bearings and Pivot Pin signify the longest lasting, fastest cutting, easiest adjusting solution for cutting holes in sheet metal. Malco Hole Cutters quickly install into the chuck of any corded or cordless drill as small as 1/4" (6.4 mm). Lightweight aluminum frames make these accessories extremely portable for a variety of hole cutting applications in sheet metal including 20-gauge (1.02 mm) galvanized steel. A compact model HC1 Hole Cutter is adjustable for making 2 to 12" (51 to 305 mm) diameter holes. The larger HC2 model cuts 2 to 20" (51 to 508 mm) holes. A combination English/Metric diameter gauge is included on the adjustable pivot slide for both models and both models use the same mill-type Cutter Bit and replacement parts.
(click image to enlarge)
Quick Overview
  • Versatile for a variety of metal work.
  • Longest lasting cutter bit.
  • Precision-fit sealed bearings.
  • Easy-adjusting pivot pin.
Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.
Details
Catalog # Description Hole Dia. in. (mm) Capacity Net Weight oz. (g)
HC1 Hole Cutter 2-12 (51-305) 20 ga. 16 ( 454 )
HC2 Hole Cutter 2-20 (51-508) 20 ga. 22 (624)
HC1B Pivot Pin Set for HC-1
HC1D Thrust Bearing with Adaptor
HC1E Adjustment Sleeve, HC-1
HC1F Ball Bearing, HC-1 (For Gray Casting)
HC1G Guide for HC-1
HC1H Screw only for HC-1
HC1I Shoe Screw
HC1K Bearing, 3/16, Knurled (For Black Casting)
CB Replacement cutter bit for HC1 & HC2
CBB Replacement cutter bit 6 pack

Capacities

Aluminum Copper Stainless Steel (22 Gauge) Galv Steel (20 Gauge)
.054 (1.46) .042 (1.07) .030 (0.76) .040 (1.02)

Other Tools Specifications

Cutting Bit Variable Leverage Ration High/Low Throughout Stroke
High Speed Steel * Recommended RPM 1350 n/a



Additional Information
Manufacturer: Malco
For More Information on the "Gold Standard" Malco Hole Cutters C, [Click Here] to Link to Manufacturer Web Site
