SKU / Product Info	Quantity
30-060 Color: Blue/Blue, 600V #20 thru #10 AWG Min. 1 #20 w/1 #18 Max. 1 #10 & 2 #12, Card of 2*
30-064 Color: Blue/Dk. Blue, 600V #18 thru #8 AWG Min. 2 #18 Max. 3 #10, Card of 2*
30-066 Color: Blue/Blue, 600V #14 thru #6 AWG Min. 3 #12 Max. 2 #6 w/ 1 #10, card of 2*
30-260 Color: Blue/Blue, 600V #20 thru #10 AWG Min. 1 #20 w/1 #18 Max. 1 #10 & 2 #12, Box of 100*
30-264 Color: Blue/Dk. Blue, 600V #18 thru #8 AWG Min. 2 #18 Max. 3 #10, Box of 50*
30-266 Color: Blue/Blue, 600V #14 thru #6 AWG Min. 3 #12 Max. 2 #6 w/ 1 #10, Box of 50*
30-360 Color: Blue/Blue, 600V #20 thru #10 AWG Min. 1 #20 w/1 #18 Max. 1 #10 & 2 #12, Box of 1000*
30-360Y Color: Yellow, 600V #20 thru #10 AWG Min. 1 #20 w/1 #18 Max. 1 #10 & 2 #12, Box of 1000*
30-364 Color: Blue/Dk. Blue, 600V #18 thru #8 AWG Min. 2 #18 Max. 3 #10, Box of 1000*
30-560Y Color: Yellow, 600V #20 thru #10 AWG Min. 1 #20 w/1 #18 Max. 1 #10 & 2 #12, Box of 2500*
30-760 Color: Blue/Blue, 600V #20 thru #10 AWG Min. 1 #20 w/1 #18 Max. 1 #10 & 2 #12, Card of 10*
30-764 Color: Blue/Dk. Blue, 600V #18 thru #8 AWG Min. 2 #18 Max. 3 #10, Card of 10*
30-766 Color:Blue/Blue, 600V #14 thru #6 AWG Min. 3 #12 Max. 2 #6 w/ 1 #10, Card of 6*

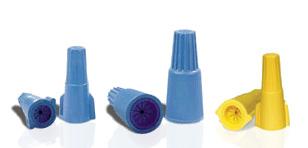

Quick Overview

Silicone-based sealant protects against moisture and corrosion
UL listed to 486D for use for direct burial
Easy to apply pre-filled twist-on wire connectors
2 models handle wire sizes from #20 to #8 AWG copper conductors
Live-action, square-wire spring
No pre-twisting required
Shell rated for 105°C

Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: IDEAL Industries, Inc.

For More Information on the IDEAL Industries UnderGround Wire Connector, [Click Here] to Link to Manufacturer Web Site
