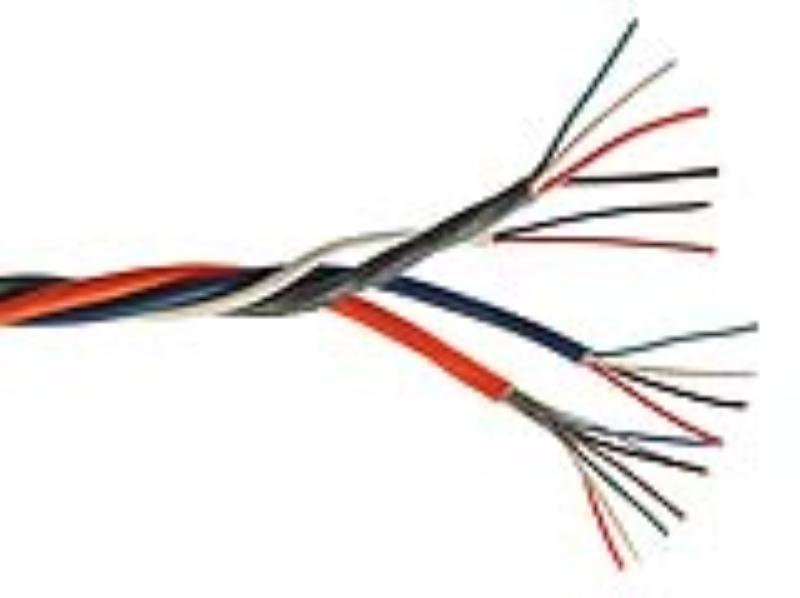

Access Control 4-Comp Unjacketed Cmr/Cl2R

56100

Coleman Cable - CCI

(click image to enlarge)
Quick Overview
    Features & Application:-
    • Labor and cost savings
    • Overall jacketed or unjacketed
    • Color-coded for easy identification and individually jacketed for a quick, error-free installation
    • Lock power (18/4)
    • Door contact (22/2)
    • Request to exit (22/4)
    • Card readers (22/6 shielded)
Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters:

PART NUMBER 56100
DESCRIPTION PN 53102, PN 53121, PN 67066 AND PN 51145 CMR/CL2R/FPLR CABLED
APPROVALS ETL Listed to UL Standard 13 & 444, CSA C22.2 No. 214
Coleman Cable Similar P/N 53102 53121 67066 51145
AWG / Quantity 22/2 22/4 22/6 Shielded 18/4
Cable Dia. 0.110 0.127" 0.172" 0.166"
Cabling lay length 4.00" Nom.
Overall Cable Diameter 0.348" Nom
Temperature Rating 60°C
Voltage Rating 300 V RMS Max
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Access Control 4-Comp Unjacketed Cmr/Cl2R, [Click Here] to Link to Manufacturer Web Site
