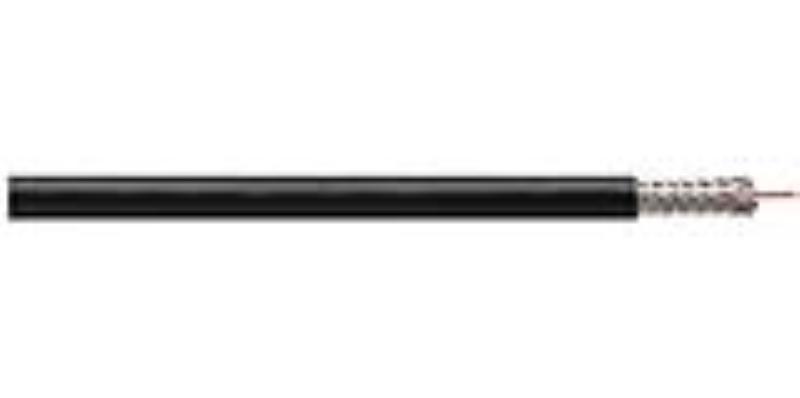

Coleman Cables Rg6 18Ccs 40 Al

92001

Coleman Cable - CCI

(click image to enlarge)
Quick Overview
    Features & Applications:-
    • RG6 Type
    • Dual or Quad Shield
    • PE Dielectric
    • PVC Jacket
    • 3.0 GHZ
    • CATV
Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties:-

Wall (in)* OD (in)*
Conductor 18 AWG (1/.0403) Copper Clad Steel - 0.040
Dielectric Foam Polyethylene color natural 0.070 0.180
Shielding Aluminum Polyester Fusible Foil Tape plus 40% Aluminum Braid - 0.216
Jacket PVC 0.032 0.269
VALUE*
Impedance (ohms) - 75
Capacitance (pF/ft) - 17
Velocity of Propagation (%) - 81
Attenuation** (db/100 ft) 10 MHz 0.9
50 MHz 1.6
100 MHz 2.3
200 MHz 3.2
400 MHz 4.8
700 MHz 6.8
1000 MHz 8.5
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg6 18Ccs 40 Al, [Click Here] to Link to Manufacturer Web Site
