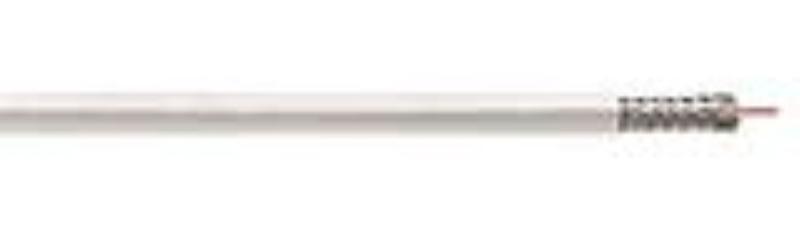

Coleman Cables Rg6 18Ccs 80 Al Plenum

921015

Coleman Cable - CCI

(click image to enlarge)
Quick Overview
    Features & Application:-
    • RG6 Type
    • FEP Dielectric
    • PVC Low Smoke Plenum Jacket
    • 3.0 GHZ
    • CATV
Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties:-

Wall (in)* OD (in)*
Conductor 18 AWG (1/.040) Copper Clad Steel - 0.040
Dielectric Foam FEP color natural 0.065 0.170
Shielding Aluminum/Polyester/Aluminum Foil with 80% Aluminum Braid - 0.194
Jacket Low Smoke PVC 0.021 0.235
VALUE*
Conductor Resistance (ohms/kft) - 16.5
Impedance(ohms) - 75
Capacitance (pF/ft) - 16.5
Velocity of Propagation (%) - 82
Attenuation** (db/100 ft) 50 MHz 1.5
100 MHz 1.9
200 MHz 3.2
400 MHz 4.2
700 MHz 6.4
1000 MHz 6.9
1500 MHz 9.4
2000 MHz 11.1
2200 MHz 11.8
3000 MHz 17
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg6 18Ccs 80 Al Plenum, [Click Here] to Link to Manufacturer Web Site
