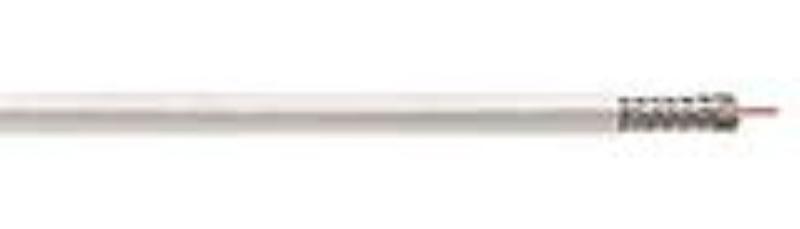

Coleman Cables Rg6 18Ccs 60/40 Al Quad Plenum

921019

Coleman Cable - CCI

(click image to enlarge)
Quick Overview
    Features & Application:-
    • RG6 Type
    • FEP Dielectric
    • PVC Low Smoke Plenum Jacket
    • 3.0 GHZ
    • CATV
Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties:-

Wall (in)* OD (in)*
Conductor 18 AWG (1/.040) Copper Clad Steel - 0.040
Dielectric Foam FEP color natural 0.064 0.168
Shielding 1&2 Bonded Aluminum/Polyester/Aluminum Foil with 60% Aluminum Braid - 0.202
Shielding 3& 4 Aluminum/Polyester/Aluminum Foil with 40% Aluminum Braid - 0.234
Jacket Low Smoke PVC 0.017 0.268
VALUE*
Conductor Resistance (ohms/kft) - 32
Impedance(ohms) - 75
Capacitance (pF/ft) - 16.5
Velocity of Propagation (%) - 82
Attenuation** (db/100 ft) 50 MHz 1.5
100 MHz 2.4
200 MHz 3.2
400 MHz 4.8
600 MHz 6.2
900 MHz 7.9
2200 MHz 14.7
3000 MHz 18.2
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg6 18Ccs 60/40 Al Quad Plenum, [Click Here] to Link to Manufacturer Web Site
