M17/29-Rg059

988299

Coleman Cable - CCI

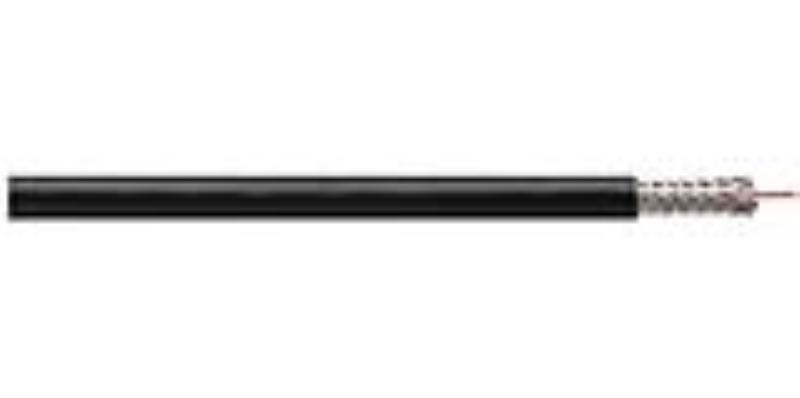

(click image to enlarge)
Quick Overview
    Features& Application:-
    • Manufactured in accordance with, tested & certified to individual Slant Sheets ie:(M17/028-RG058)
    • RoHS & REACH compliant insulating compounds
    • Test Reports with manufacturing lot for each & every cable
    • Certificate of Compliance with MIL-DTL-17
    • Made in the USA
    • High frequency RF antenna for ground support equipment
    • Radar systems & flight guidance equipment
    • Secure & cryptic aerospace communications
Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties

Wall (in)* OD (in)*
Conductor 23 AWG Solid Copper Covered Steel 0.035
Dielectric Solid Polyethylene color natural 0.062 0.146
Shielding 95% Solid Bare Copper Braid 0.174
Jacket Type II Non Contaminating PVC 0.029 0.195
VALUE*
Impedance (ohms) 75
Capacitance (Max. pF/ft) 22.0
Velocity of Propagation (%) 66
Attenuation (Max db/100 ft) 50 MHz 1.9
100 MHz 2.7
200 MHz 41
400 MHz 8.0
1000MHz 13.0
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the M17/29-Rg059, [Click Here] to Link to Manufacturer Web Site
