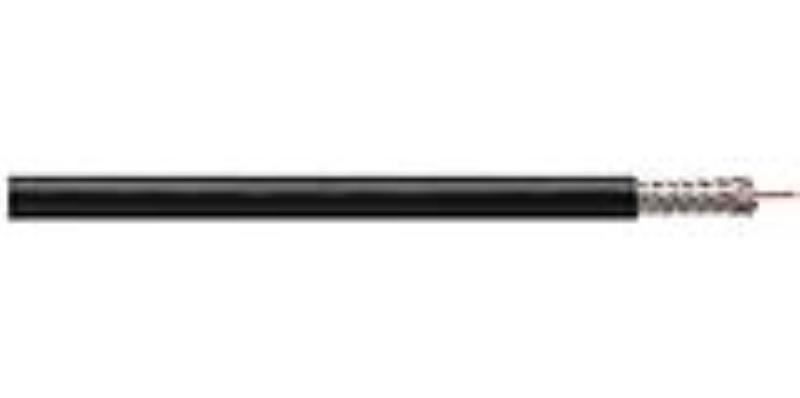

M17/2-Rg06

988418

Coleman Cable - CCI

(click image to enlarge)
Quick Overview
    Features& Application:-
    • Manufactured in accordance with, tested & certified to individual Slant Sheets ie:(M17/028-RG058)
    • RoHS & REACH compliant insulating compounds
    • Test Reports with manufacturing lot for each & every cable
    • Certificate of Compliance with MIL-DTL-17
    • Made in the USA
    • High frequency RF antenna for ground support equipment
    • Radar systems & flight guidance equipment
    • Secure & cryptic aerospace communications
Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties

Wall (in)* OD (in)*
Conductor 21 AWG (1/.0285) Copper Clad Steel 0.029
Dielectric Solid Polyethylene color natural 0.078 0.185
Shielding 95% Silver Coated Copper Braid plus 95% Copper Braid 0.241
Jacket PVC (Non-Contaminating Vinyl) 0.046 0.332
VALUE*
Impedance (ohms)75
Capacitance pf/ft20.5
Velocity of Propagation (%) 66
Attenuation (Max db/100 ft) 400 MHz 6.5
3000 MHz 23
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the M17/2-Rg06, [Click Here] to Link to Manufacturer Web Site
