M17/28-Rg058

988591

Coleman Cable - CCI

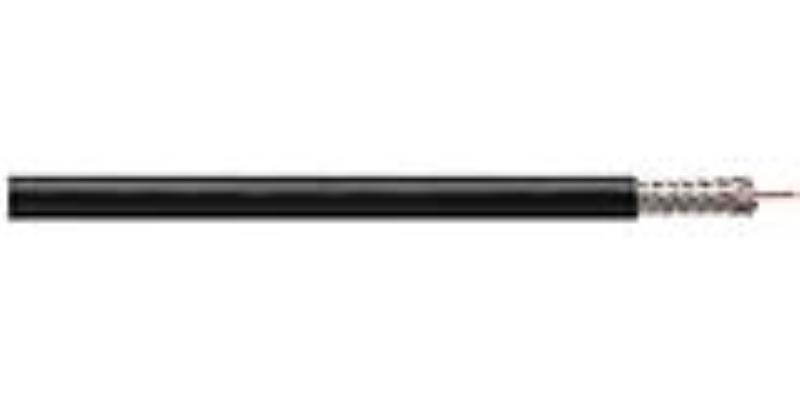

(click image to enlarge)
Quick Overview
    Features& Application:-
    • Manufactured in accordance with, tested & certified to individual Slant Sheets ie:(M17/028-RG058)
    • RoHS & REACH compliant insulating compounds
    • Test Reports with manufacturing lot for each & every cable
    • Certificate of Compliance with MIL-DTL-17
    • Made in the USA
    • High frequency RF antenna for ground support equipment
    • Radar systems & flight guidance equipment
    • Secure & cryptic aerospace communications
Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties

Wall (in)* OD (in)*
Conductor 20 AWG (19/33) Tinned Coated Copper0.035
Dielectric Solid Polyethylene color natural 0.041 0.116
Shielding 93% Tinned Coated Copper Braid 0.138
Jacket PVC (Non-Contaminating Vinyl)0.029 0.195
VALUE*
Conductor Resistance (Max./100 ft) 1.24
Impedance (ohms) 50
Capacitance (Max. pF/ft) 32.2
Velocity of Propagation (%) 66
Attenuation (Max db/100 ft) 50 MHz 4
100 MHz 6.5
400 MHz 17.0
1000 MHz 28.0
SRL (Min: dB) 100 MHz 27.3
500 MHz 25.0
800 MHz 24.0
1000 MHz 24.5
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the M17/28-Rg058, [Click Here] to Link to Manufacturer Web Site
