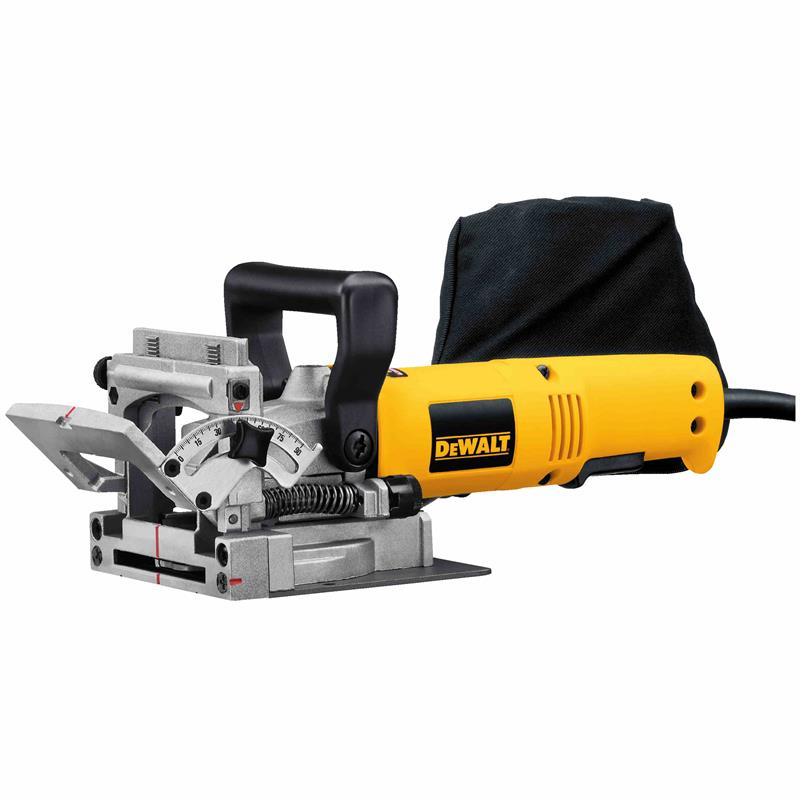

The DW682K Plate Joiner Kit has a powerful motor for working with hard woods. Features a dual rack and pinion fence ensuring blade and fence parallelism for accurate joints every time. Integral one-piece fence is adjustable and tilts 0-90°.

(click image to enlarge)

Quick Overview

Amps 6.5Amps
No Load Speed 10,000rpm
Depth of Cut (mm) 20mm
Arbor Size 7/8''
Fence Type Dual Rack and Pinion
Biscuits Accepted 0, 10, 20
Tool Weight 6.6lbs
Shipping Weight 14.3lbs

Interested in this item or want more information?

Phone: (800)-430-1417
Email: teri.collins@yoshissupply.com

Can't find what you want? Give us a call and we can help you find it.

Details

Features & Specs

FEATURES

6.5 amp, 10,000 rpm motor provides power for working in the hardest woods
Dual rack and pinion fence ensure blade and fence are always parallel for accurate joints every time
Integral one-piece fence is adjustable and tilts 0-90°
Flush cuts can be made at 0° without removing fence
45-degree locating notch in fence allows indexing off the outside surface of a mitered joint
Non-marring, heavy-duty aluminum shoe allows joiner to be clamped for stationary work
Retractable, anti-slip pins help hold work in place
Preset depth stops for all common biscuit sizes

Specifications

Amps 6.5 Amps
Depth Adjustment Yes
Dust Collection Bag
Power Tool Type Corded
Tool Height 6.75 in
Tool Weight 6.6 lbs

Includes

Carbide blade
Dust bag
Vacuum adapter
Torx® key
Wrench
Kit Box

Additional Information

Manufacturer: DeWalt
